Aruba Certified Switching Associate v1.0
Question 1
What is the process where a compute device converts logical data bits into the correct physical representation depending on the media?
- A. Demodulation
- B. Modulation
- C. Propagation
- D. Encapsulation
Answer : D
Question 2
Which two statements are true regarding Checkpoints on Aruba switches? (Choose two.)
- A. Rolling back to a prior checkpoint triggers a reboot of the switch.
- B. Stacking switches using VSF or VSX will disable the Checkpoint feature.
- C. A checkpoint is a snapshot of the running-configuration and relevant metadata at the time the checkpoint was created.
- D. System-generated checkpoints are created after a configuration change and 5 minutes of inactivity.
- E. Checkpoints are available on AOS 5400R switches, as well as on all AOS-CX switches.
Answer : CE
Question 3
Which two port characteristics must match between LAG interfaces? (Choose two.)
- A. Port number
- B. Duplex
- C. Member ID
- D. Media type
- E. Chassis number
Answer : BD
Question 4
The customer has 778 developers testing computer games on the network.
Which two actions resolve Broadcast storms? (Choose two.)
- A. Manually disable the redundant link to immediately resolve the impacted portion of the network.
- B. Utilize Spanning Tree to dynamically disable all redundant links in a segment.
- C. Setting switch ports to half-duplex will resolve Broadcast storms using Carrier Sense Multiple-Access Collision Detection (CSMA/CD).
- D. Enable single Area Open Shortest Path First (OSPF) on all Layer 2 switches, but do not enable routing.
- E. Utilize Spanning Tree to dynamically block Designated ports in addition to Alternate ports.
Answer : AB
Question 5
Interface 1/1/1 is up -
Admin state is up -
Link transitions: 1 -
Description: TO_PC-1 -
Hardware: Ethernet, MAC Address: 00:11:22:33:44:55
MTU 1500 -
Type 1GbT -
Full-duplex -
qos trust none
Speed 1000 Mb/s -
Auto-negotiation is on -
Flow-control: off -
Error-control: off -
MDI mode: MDIX -
VLAN Mode: access -
Access VLAN: 1111 -
Which command will produce the above output?
- A. show interface vlan 1111
- B. show interface 1/1/1
- C. show interface gigabit 1/1/1
- D. show vlan 1111
Answer : B
Question 6

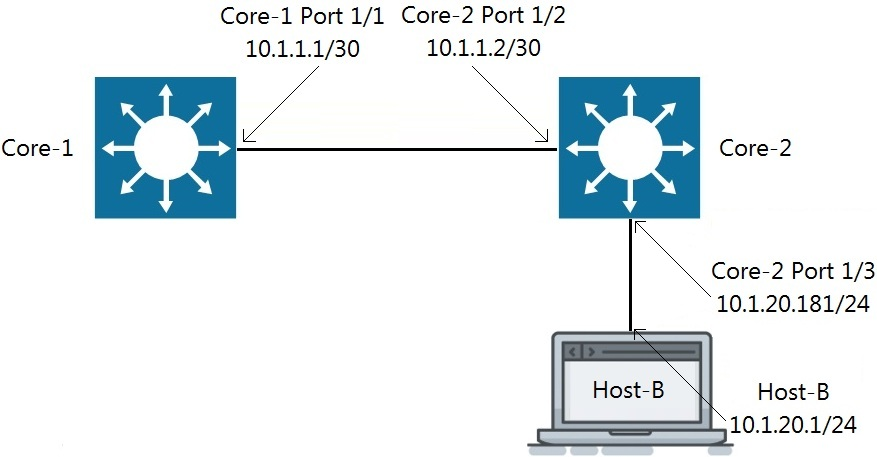

Refer to the exhibit.
Traffic is failing between Core-1 and Host-B. IP addressing has correctly been applied, and all interfaces are attached to the vrf GREEN.
Which configuration will correct the issue?
- A. Core-2(config)# ip route 0.0.0.0/0 10.1.1.1 vrf GREEN Host-B: assign the default-gateway address 10.1.20.181
- B. Core-1(config)# ip route 10.1.20.0/24 10.1.1.2 vrf GREEN Host-B: assign the default-gateway address 10.1.20.181
- C. Core-1(config)# ip route 10.1.20.0/24 10.1.1.2 vrf GREEN Host-B: assign the default-gateway address 10.1.20.1
- D. Host-B: assign the default-gateway address 10.1.20.181
Answer : B
Question 7
What is an available command on an Aruba AOS-CX switch that would back up the secondary image to a secure remote repository?
- A. backup secondary sftp://[email protected]/GL.10.04.0003.swi
- B. copy secondary sftp://[email protected]/GL.10.04.0003.swi
- C. copy sftp://[email protected]/GL.10.04.0003.swi secondary
- D. copy secondary tftp://[email protected]/GL.10.04.0003.swi
Answer : B
Question 8

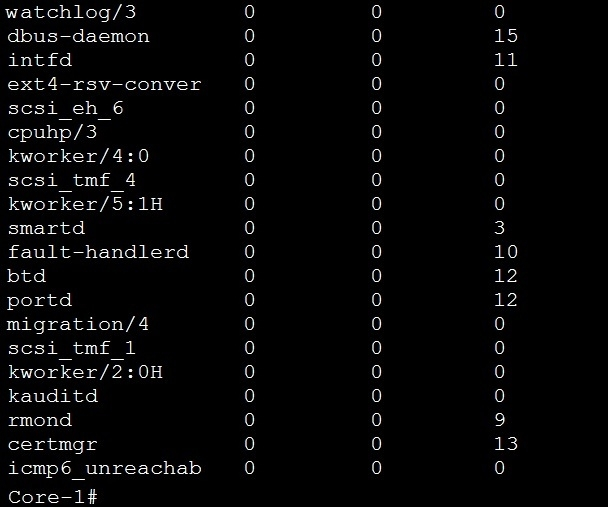

Refer to the exhibit.
The above output is the result of issuing the command show system resource-utilization.
What command should be used to enable terminal output line by line or page by page?
- A. The command page
- B. The command terminal length 30
- C. The command more
- D. The command less
Answer : A
Question 9

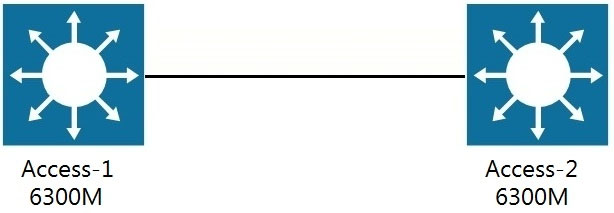

Refer to the exhibit.
You are in the process of configuring VSF between Access-1 and Access-2. Access-1 has been configured as the VSF Master.
What is a valid configuration for Access-2 to join the VSF stack?
- A. Access-2# configure Access-2(config)# vsf member 1 Access-2(config)# vsf renumber-to 2 Access-2(vsf-member-1)# link 2 2/1/28 Access-2(vsf-member-1)# exit This will save the VSF configuration and reboot the switch. Do you want to continue (y/n)? y
- B. Access-2# configure Access-2(config)# vsf member 2 Access-2(vsf-member-1)# link 2 1/1/28 Access-2(vsf-member-1)# exit This will save the VSF configuration and reboot the switch. Do you want to continue (y/n)? y
- C. Access-2# configure Access-2(config)# vsf member 2 Access-2(vsf-member-1)# link 1 1/1/28 Access-2(vsf-member-1)# exit This will save the VSF configuration and reboot the switch. Do you want to continue (y/n)? y
- D. Access-2# configure Access-2(config)# vsf member 1 Access-2(vsf-member-1)# link 1 1/1/28 Access-2(vsf-member-1)# exit Access-2(config)# vsf renumber-to 2 This will save the VSF configuration and reboot the switch. Do you want to continue (y/n)? y
Answer : C
Question 10
DRAG DROP -

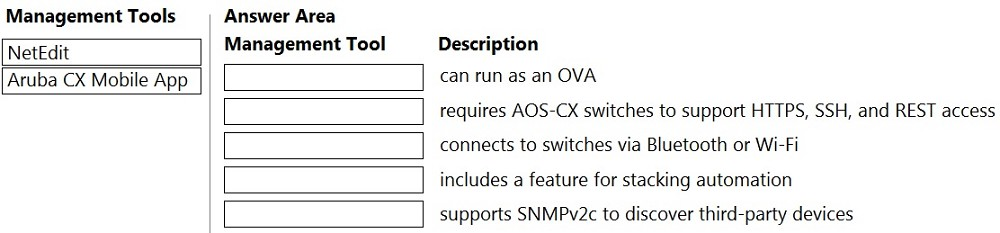

Match each description to the correct management tool for Aruba AOS-CX.
Select and Place:

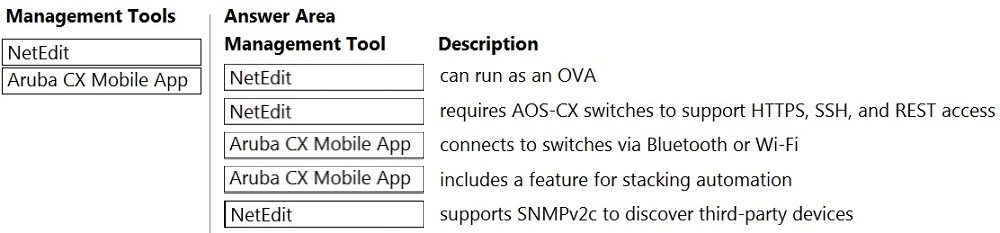

Answer :
Question 11

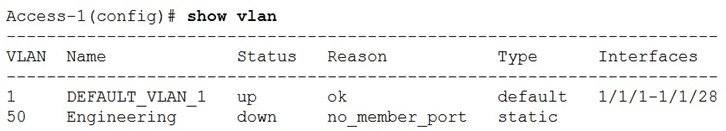

Refer to the exhibit -
What is true regarding VLAN 50 according to the diagram above?
- A. VLAN 50 is part of a switched virtual interface (SVI) that was never routed causing it to be down.
- B. Since VLAN 50 has not been assigned to any enabled physical port, the status is down.
- C. VLAN 50 is assigned only to Trunk ports which is why no ports are listed under interfaces.
- D. VLAN 50 was never added to the vlan-database and therefore is in a down state.
Answer : B
Question 12
Which command can be used to find the serial number of an Aruba OS-CX switch?
- A. The command inventory
- B. The command version
- C. The command show running-configuration
- D. The command show system
Answer : D
Question 13
DRAG DROP -

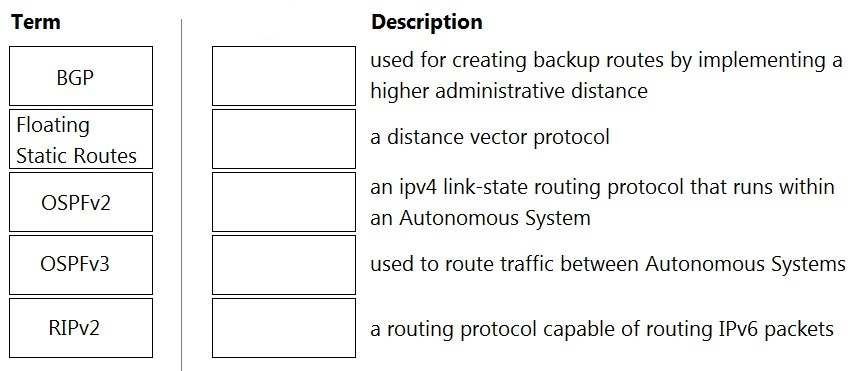

Match the term to the correct description.
Select and Place:

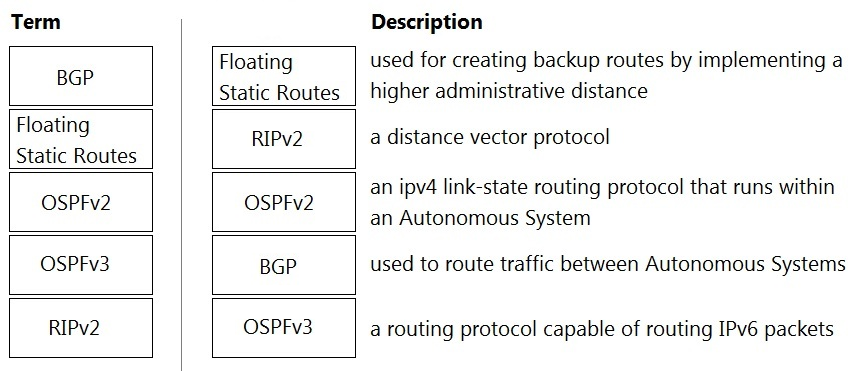

Answer :
Question 14
Which statement is true regarding modern switching requirements?
- A. Most older legacy switches had high port bandwidth utilization and were future proof designed to meet today's power-over-Ethernet needs.
- B. Requirements for PoE are normally addressed using AC to DC power adapters. Concerns for port security for IoT devices are usually addressed using default wired encryption that all 802.3 Ethernet switches provide.
- C. While APs are common, most clients are still docked and only require traditional wired connections with only the occasional dedicated PoE switch to provide power for the low number of devices needed.
- D. Clients tend to prefer wireless connections, raising the need for PoE port access. There is also a growing amount of IoT devices that require security and port authentication options.
Answer : D
Question 15
Which two statements accurately describe the features of NetEdit? (Choose two.)
- A. NetEdit can be used to configure and validate any third-party device that supports SSH and REST access.
- B. NetEdit includes trial licensing for up to 10 nodes.
- C. NetEdit can perform configuration and compliance validation.
- D. NetEdit supports viewing and editing multiple devices using a single deployment plan.
- E. NetEdit can run on a mobile device using Android or Apple IOS.
Answer : CD
