Implementing and Administering the FlexPod Solution (FPIMPADM) v1.0
Question 1
Which three are characteristics of a NAS data LIF? (Choose three.)
- A. It can be associated with a Fibre Channel port.
- B. It can be associated with a WWPN
- C. It can be associated with an Ethernet port or VLAN interface.
- D. It can be associated with an interface group (ifgrp).
- E. It can be associated with an IP address.
- F. It is associated with the administrative Vserver.
- G. It is associated with the management LIF.
Answer : CDE
Question 2
Which two are characteristics of a Fibre Channel SAN data LIF? (Choose two.)
- A. It can be associated with a Fibre Channel port.
- B. It can be associated with a WWPN.
- C. It can be associated with an Ethernet port or VLAN interface.
- D. It can be associated with an interface group (ifgrp).
- E. It can be associated with an IP address.
- F. It is associated with the administrative Vserver.
- G. It is associated with the management LIF.
Answer : AB
Question 3
Which two LIFs are able to failover or migrate to other nodes in the cluster? (Choose two.)
- A. cluster LIF
- B. data LIF of protocol CIFS
- C. data LIF of protocol FCoE
- D. data LIF of protocol iSCSI
- E. data LIF of protocol NFS
- F. intercluster LIF
- G. node management LIF
Answer : BE
Question 4
Which server role is required to support running virtual machines on a Microsoft based hypervisor?
- A. Web Server
- B. Remote Access
- C. Application Server
- D. Hyper-V
Answer : D
Question 5
Which service may be used to manage users and groups in a vSphere environment?
- A. Microsoft Active Directory (AD)
- B. Network Time Protocol (NTP)
- C. VMware vSphere Storage APIs for Array Integration (VAAI)
- D. Domain Name System (DNS)
Answer : A
Question 6
Refer to the exhibit.
When configuring a Cisco UCS B-Series server to support boot from SAN in a FlexPod deployment, which statement is correct?
- A. This configuration will not support boot from SAN.
- B. Boot from SAN is not supported in a FlexPod environment
- C. This given configuration will not support a local ESXi installation
- D. This configuration will support boot from SAN
Answer : A
Question 7

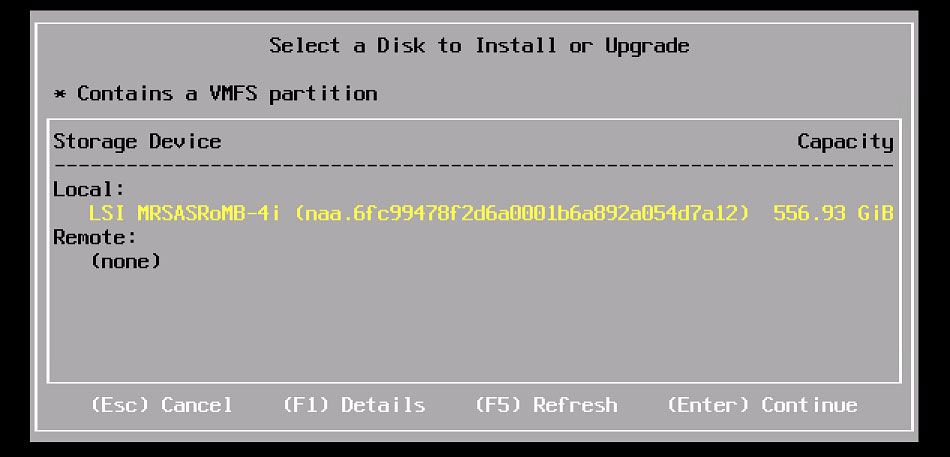

When installing an instance of VMware ESXi on a UCS B-Series server, where should an ISO image be loaded?
- A. From the UCS Manager select KVM Console, Select the Virtual Media tab, and select Add Image
- B. ISO images should not be used
- C. Only physical install disks are supported on UCS B-Series servers
- D. The UCS vCenter Plugin must be used
Answer : A
Question 8

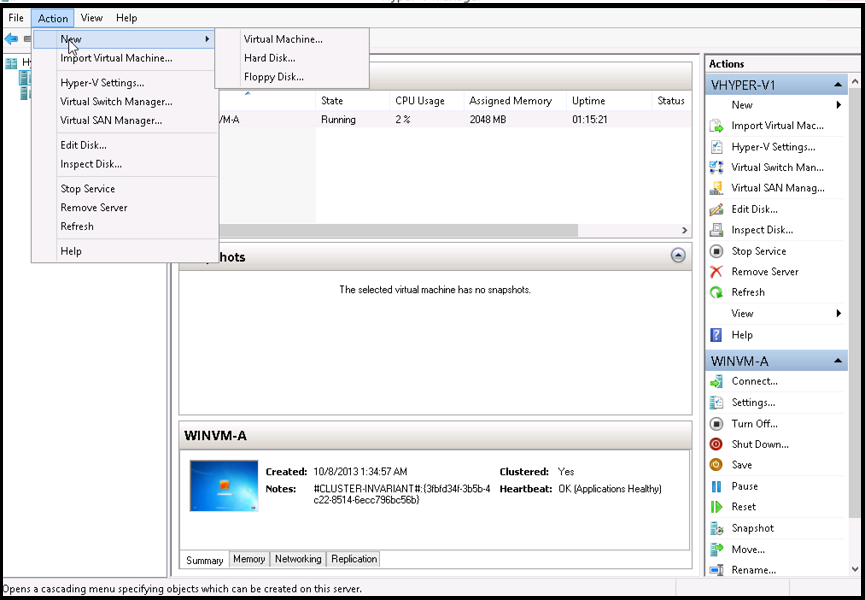

Refer to the exhibit.
What management tool may be used for creating virtual machines?
- A. MMC
- B. System Center Virtual Machine Manager
- C. Hyper-V Manager
- D. System Center Orchestrator
Answer : C
Question 9
When creating a virtual machine in VMware vSphere 5.x, which type of virtual disk should be provisioned if you would like to fully pre-allocate storage with the highest chance of being contiguous?
- A. Thick Provision Lazy Zeroed
- B. Thin Provision
- C. Full Provision
- D. Thick Provision Eager Zeroed
Answer : D
Question 10
Which four items are required in order to create a Gold Master Boot LUN to automate the provisioning of Hyper-V hosts using the built-in LUN cloning capabilities of NetApp storage? (Choose four.)
- A. Create additional virtual fibre channel (vfc) interfaces for the Nexus 5500
- B. Creation of a LUN for the Gold Master Boot LUN
- C. Configuration of the Server OS and hotfix installation
- D. Create a new interface group on the NetApp Cluster
- E. SysPrep of the server operating system
- F. Creation of a service profile and zoning for Gold Master Boot LUN
Answer : BCEF
Question 11
Which two are the expected outputs of network interface show? (Choose two.)
- A. IP addresses of NAS and iSCSI logical interfaces
- B. iSCSI IQNs
- C. Namespace of SAN logical interfaces
- D. System WW node name
- E. WW port names of Fibre Channel and FCoE logical interfaces
Answer : AE
Question 12
Which sends support summary information to NetApp through HTTPS?
- A. AutoSupport
- B. FlexSupport
- C. SnapSupport
- D. TechSupport
Answer : A
Question 13
When configuring a volume to contain a LUN, which administrative tool automatically applies NetApp recommendations?
- A. Data ONTAP command-line interface
- B. OnCommand System Manager
- C. Microsoft SystemCenter
- D. VMware vSphere
Answer : B
Question 14
When trying to configure a Virtual Port Channel (vPC), what might be a cause of the following error when trying to create the vPC domain?
Nexus-5548-B(config)# vpc domain 10
^% Invalid command at '^' marker.Nexus-5548-B(config)#
- A. Have not yet turned on the vpc feature using the "˜feature vpc"™ command
- B. The vPC links have to be configured before the vPC domain can be added
- C. The vPC domain has already been configured
- D. vPC domain cannot be configured at the global prompt
Answer : A
Question 15
Which tool can be used to validate hardware installation in a FlexPod solution?
- A. NetApp OnCommand Insight
- B. NetApp Config Advisor
- C. NetApp OnCommand Unified Manager
- D. Cisco UCS Central
- E. Cisco UCS Director
Answer : B
