CCIE Data Center Written Exam v1.0
Question 1
In which EPG is the consumer interface of an L4-L7 device placed?
- A. consumer EPG
- B. shadow consumer EPG
- C. shadow provider EPG
- D. provider EPG
Answer : B
Explanation:
Question 2

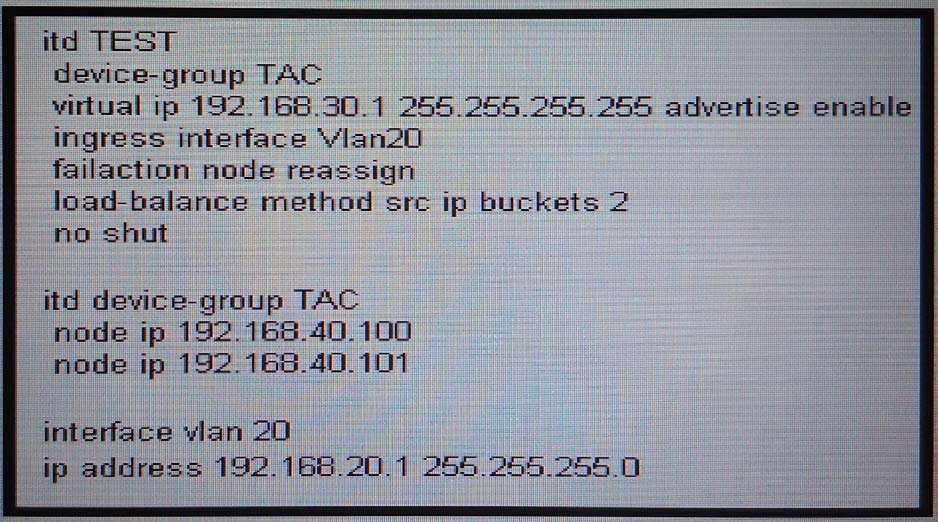

Refer to the exhibit. ITD is configured as shown on a Cisco Nexus 7000 switch. Why is ping address still not working?
- A. Fail actions is set to the wrong mode.
- B. This behavior is normal.
- C. To ping, you must add a probe to the device group.
- D. VIP must be from the same subnet as the ingress interface.
Answer : C
Explanation:
Question 3
Which two options does ITD replace? (Choose two.)
- A. policy-based routing
- B. Layer 4 load balancer
- C. access lists
- D. Layer 7 load balancer
- E. IP SLA
- F. WCCP
Answer : AF
Explanation:
Question 4
On which two features does ITD depend? (Choose two.)
- A. BFD
- B. PBR
- C. WCCP
- D. Netflow
- E. IP SLA
- F. interface-vlan BD
Answer : Explanation
Explanation:
Question 5
Which platforms support ITD?
- A. Nexus 7000 and Nexus 9000 only
- B. Nexus 7000, Nexus 9000, Nexus 6000, and Nexus 5000
- C. Nexus 7000, Nexus 9000, and Nexus 5000 only
- D. Nexus 7000 with F3 line cards only
- E. Nexus 7000, Nexus 9000, and Nexus 6000 only
Answer : B
Explanation:
Question 6
According to Cisco, which two options are benefits of ITD compared to WCCP? (Choose two.)
- A. does not require authentication or certificates
- B. weighted load distribution
- C. much less configuration
- D. transparent for service node
- E. requires less TCAM entries
Answer : BE
Explanation:
Question 7
On a cluster with three APICs, on which APIC can you see actual device package logs?
- A. depending on the device package, on the APIC that is a leader for that device package
- B. on the one that is a leader for device package service
- C. APIC 1
- D. depending on the tenant, on the APIC that is a leader for the shard for that particular tenant
Answer : C
Explanation:
Question 8
On which two criteria can an endpoint be classified statically into an application EPG? (Choose two.)
- A. VM name
- B. physical leaf port
- C. guest operating system
- D. DNS host name
- E. VLAN
Answer : AE
Explanation:
Question 9
Which description of how to enable the Flex Flash Controller auto-sync function on the B200M4 blade is true?
- A. Enable auto-sync in the servers > inventory > storage subtab
- B. Configure a storage connection policy to use auto-sync.
- C. Configure a local disk policy for FlexFlash.
- D. Configure a storage policy for FX3S.
Answer : A
Explanation:
Question 10
Which description of how to enable DIMM Blacklisting is true?
- A. Configure a memory policy in the equipment > policy subtab.
- B. Enable blacklisting in the servers > policy subtab.
- C. Configure a memory policy under the services tab.
- D. Enable blacklisting in the servers inventory > memory subtab.
Answer : B
Question 11

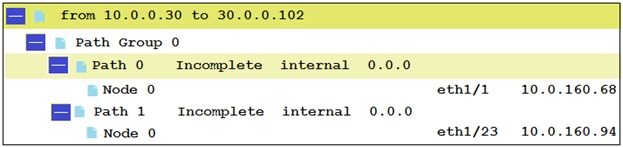

Refer to the exhibit. Many tools are available to troubleshoot an ACI fabric. Which tool is this sample output from?
- A. iPing
- B. atomic counters
- C. traffic map
- D. traceroute
Answer : B
Explanation:
Question 12

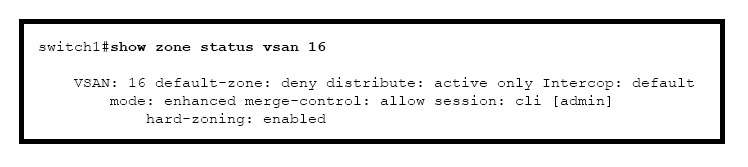

Refer to the exhibit. Which two CLI actions are appropriate to try to resolve the enhanced zoning lock problem? (Choose two.)
- A. Use theclear zone lockcommand to remove the lock. Use this command on each switch in thefabric for VSAN 16 only.
- B. Using either Cisco Fabric Manager or the CLI, reactivate the existing zone set for VSAN 16. Be careful to only reactivate and not deactivate activate to avoid a disruption in service.
- C. Use theshow zone internal vsan 16commandto determine the IP address of the user and MDS switch where the lock is currently held.
- D. Use theno zone commit vsan <vsan id> forcecommand on the switch that holds the lock to release the lock if another user holds the lock.
- E. Use theno zone commitvsancommand on the switch that holds the lock to release the lock if you are the holder of the lock.
Answer : AE
Explanation:
Question 13

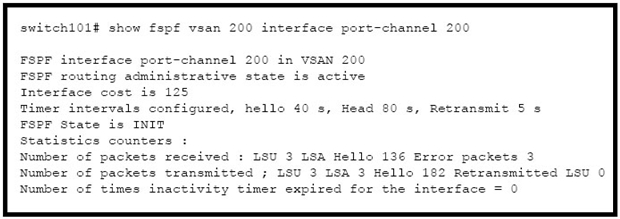

Refer to the exhibit. Assuming no traffic engineering has been configured, what is the link speed of port channel 200?
- A. 4 Gbps
- B. 1 Gbps
- C. 8 Gbps
- D. 6 Gbps
Answer : C
Explanation:
Question 14

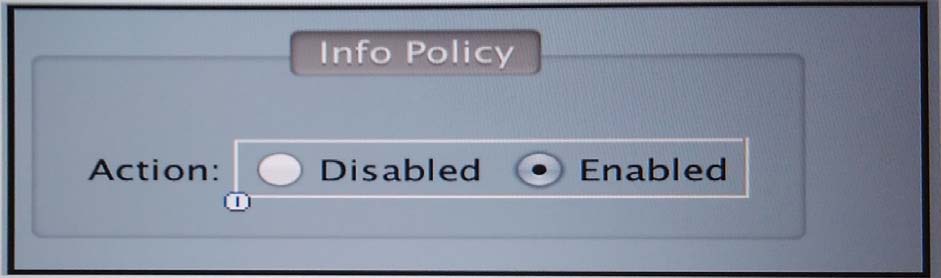

Refer to the exhibit. Which outcome of this configuration is true?
- A. Fabric interconnects can view neighbor switches.
- B. It displays Cisco UCS Central on the UCSM portal page.
- C. Itenables the CIM XML service.
- D. It enables call home policies to take effect.
Answer : A
Explanation:
Question 15

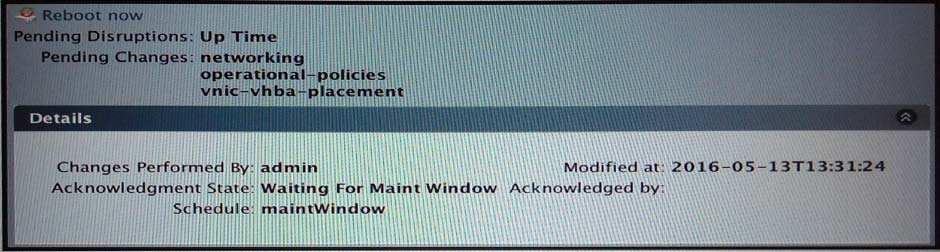

Refer to the exhibit. Which option describes when this server reboots?
- A. immediately after the next change
- B. when the user acknowledges thereboot
- C. when the schedule is set to occur
- D. when the vnic/vhba placement is changed
Answer : D
Explanation:
