Automating Cisco Data Center Solutions (DCAUTO) v1.0
Question 1

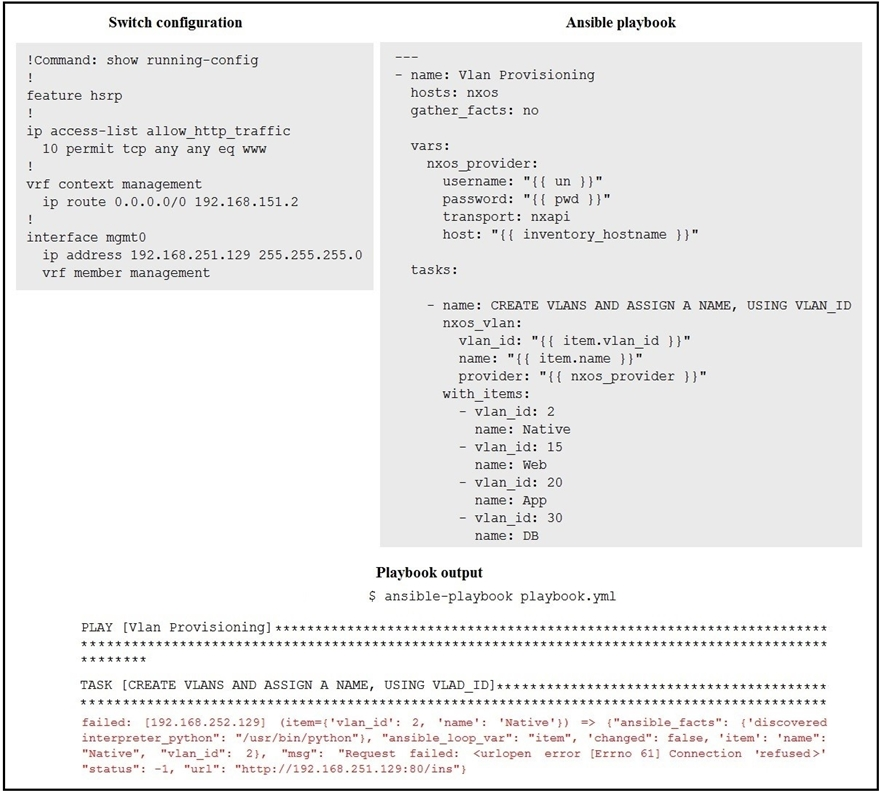

Refer to the exhibit.
The exhibit shows a Cisco NX-OS switch configuration, an Ansible playbook, and the output of running this playbook. The playbook failed due to error "msg'
'Request failed <urlopen error [Errno 61] Connection refused>', 'status' -1, "url" "http://192.168.251.129:80/ins".
Which Cisco NX-OS configuration command resolves this failure?
- A. feature nxapi
- B. http-server enabled
- C. interface mgmt0; ip access-group allow_http_traffic in
- D. feature http
Answer : A
Question 2

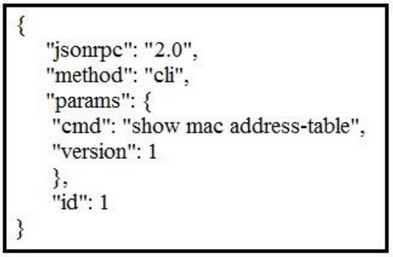

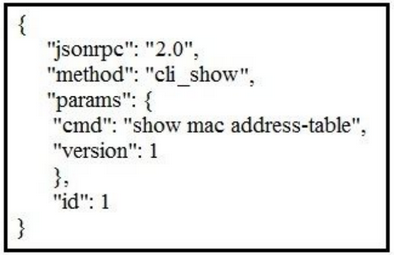

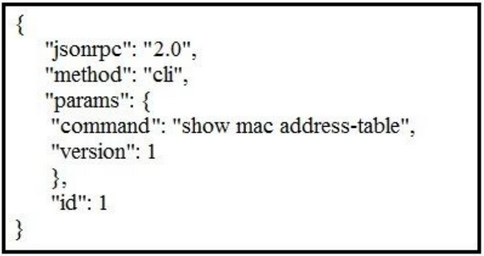

Which NX-API request queries the MAC address table?
A.
B.
C.
D.
Answer : D
Question 3
Which two bootstrap technologies are supported by Cisco NX-OS platforms? (Choose two.)
- A. iPXE
- B. PNP
- C. POAP
- D. BOOTP
- E. DHCP
Answer : AC
Question 4

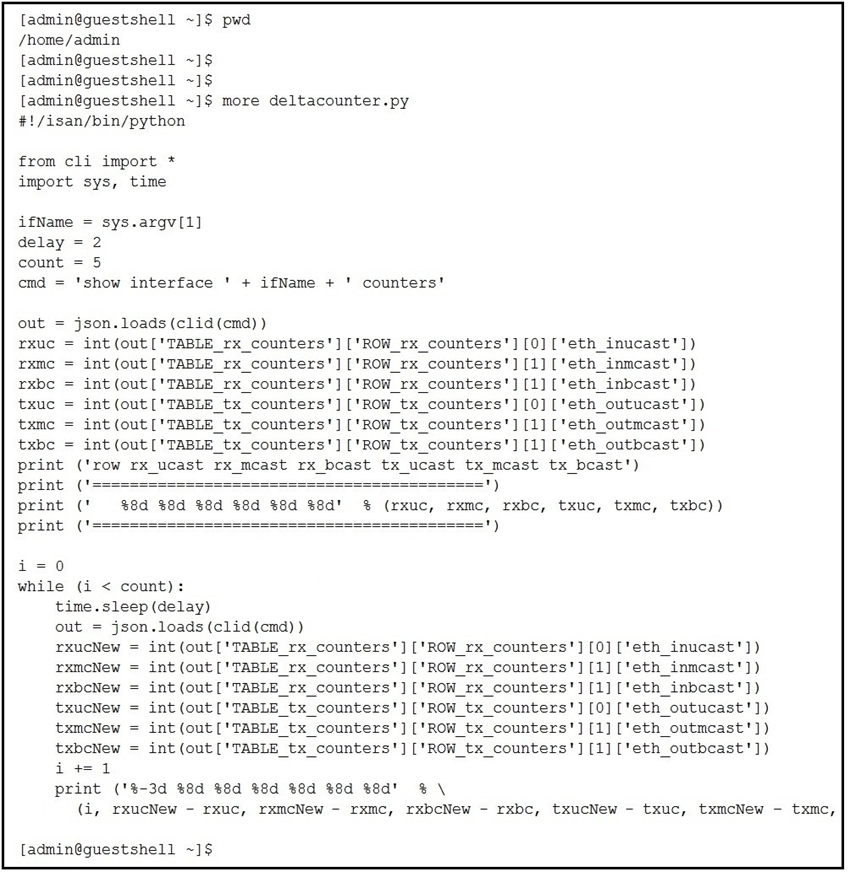

Refer to the exhibit.
The script is called deltacounters.py and it is currently inside a Guest Shell container running inside a Cisco NX-OS switch.
Which Cisco NX-OS command results in a successful execution of this script?
- A. python /home/admin/bootflash:deltacounters.py ethemet1/1
- B. show python bootflash:deltacounters.py ethernet1/1
- C. guestshell run python /home/admin/deltacounter.py ethernet1/1
- D. guestshell execute python /home/admin/deltacounter.py ethernet1/1
Answer : C
Question 5

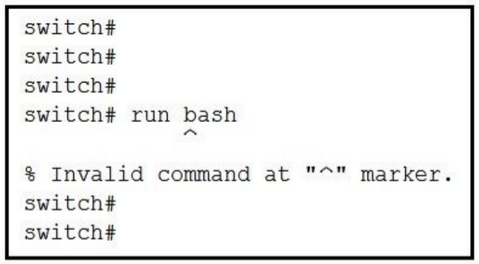

Refer to the exhibit.
Which configuration change command must be run on the Cisco NX-OS device to make this command work?
- A. enable bash-shell
- B. bash-shell enable
- C. service bash-shell
- D. feature bash-shell
Answer : D
Question 6
During the process of starting a Python network telemetry collector, which command starts the Cisco bigmuddy-network-telemetry-collector from GitHub?
- A. model driven telemetry
- B. telemetry_receiver.py --ip-address <addr> --port <port>
- C. telemetry_receiver.py --destination <port> --url <url>
- D. streaming telemetry
Answer : B
Question 7
When the Cisco bigmuddy-network-telemetry-collector from GitHub is used, which command displays only the message headers?
- A. --print
- B. --all
- C. --brief
- D. --print-all
Answer : C
Question 8
What are two differences between SNMP and model-driven telemetry? (Choose two.)
- A. SNMP uses a continuous stream model.
- B. SNMP uses a push model.
- C. SNMP uses a pull model.
- D. Model-driven telemetry uses a pull model.
- E. Model-driven telemetry uses a push model.
Answer : CE
Question 9
What is a feature of model-driven telemetry?
- A. randomizes the data out of the network
- B. continuously streams data out of the network
- C. randomizes the data coming to the network
- D. continuously pulls data out of the network
Answer : B
Question 10
DRAG DROP -

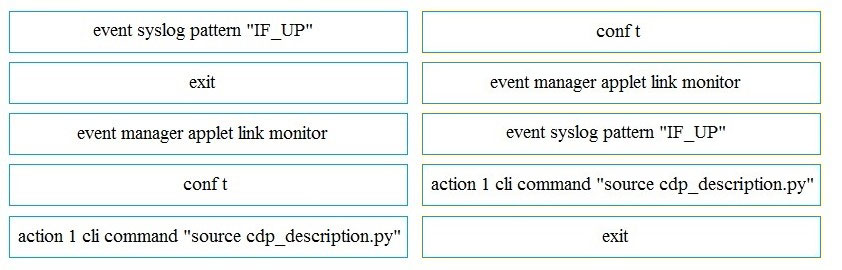

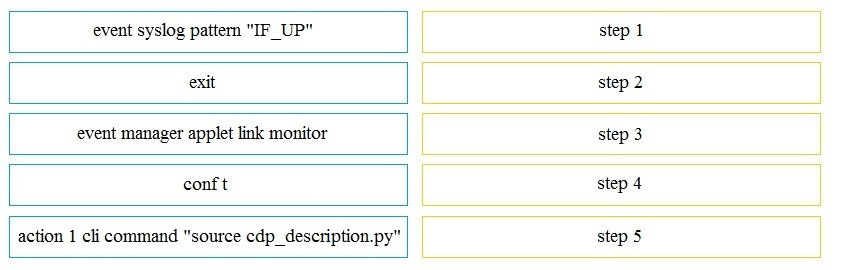

After a Cisco Nexus switch interface is enabled and in the up state, an engineer must automate the configuration of the interface descriptions using the EEM
Python Module.
Drag and drop the steps the engineer must take from the left into the correct order on the right.
Select and Place:
Answer :
Reference:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/datamodels/configuration/xe-16/data-models-xe-16-book/python-scripting-for-eem.html
Question 11

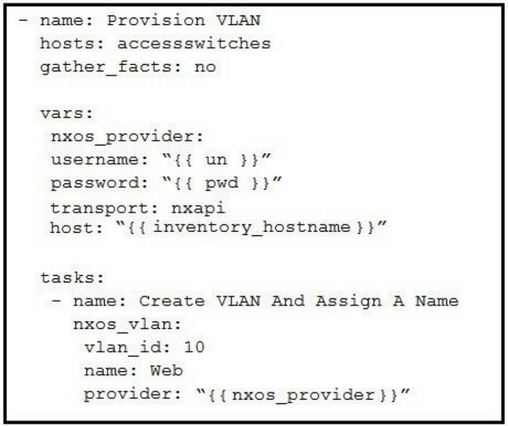

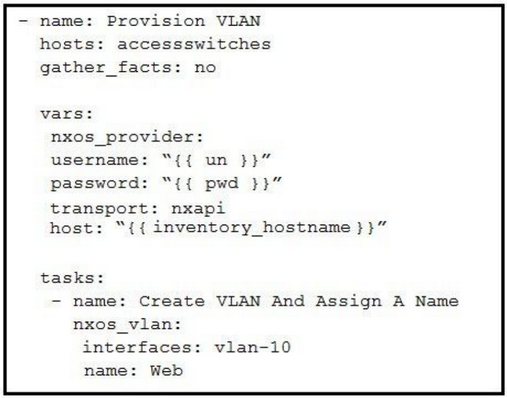

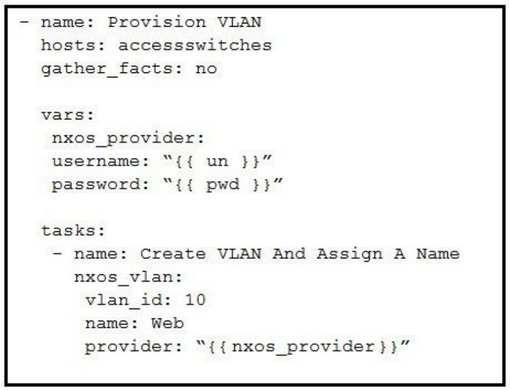

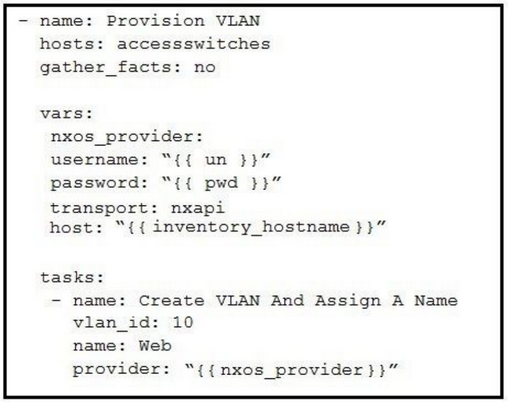

Which Ansible playbook creates a new VLAN 10 named Web?
A.
B.
C.
D.
Answer : D
Question 12

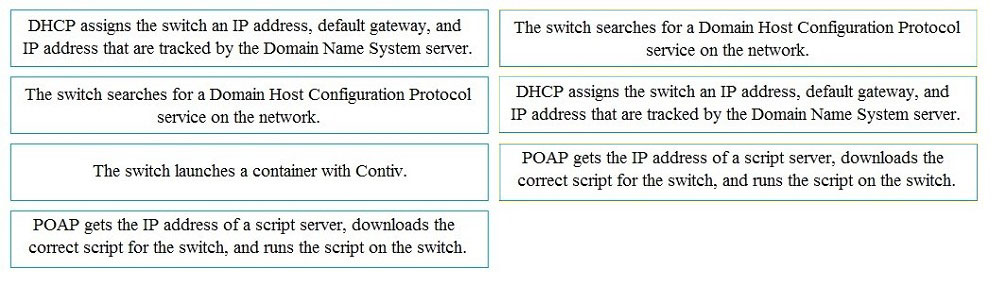

DRAG DROP -

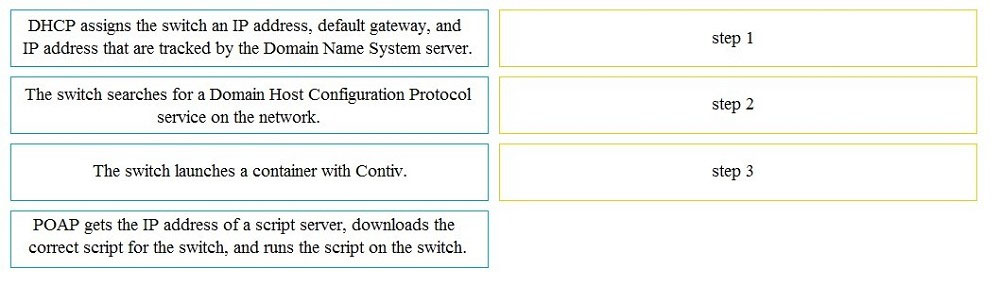

When a switch boots it does not find its startup-config file. Drag and drop the steps that Power-On Auto Provisioning goes through to configure the switch for remote management from the left into the correct order on the right. Not all options are used.
Select and Place:
Answer :
Reference:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/6-x/fundamentals/configuration/guide/b_Cisco_Nexus_9000_Series_NX-
OS_Fundamentals_Configuration_Guide/b_Cisco_Nexus_9000_Series_NX-OS_Fundamentals_Configuration_Guide_chapter_011.pdf
Question 13
What are two capabilities of the DCNM REST API? (Choose two.)
- A. uses the dcnm-token header for requests authentication after initial basic authentication
- B. uses basic authentication without encoding for username and password
- C. supports HTTP until release 11.0(1)
- D. uses bearer key authorization
- E. is separated into Classic LAN, LAN Fabric, Media Controller, and SAN Management categories
Answer : AE
Question 14
Which two capabilities apply to the DCNM API? (Choose two.)
- A. DCNM provides an XML-based SOAP API.
- B. DCNM requires a license to use the API.
- C. Some features of DCNM must be configured through the GUI.
- D. All API operations can be performed using the DCNM GUI.
- E. DCNM provides a REST-based API.
Answer : AE
Question 15

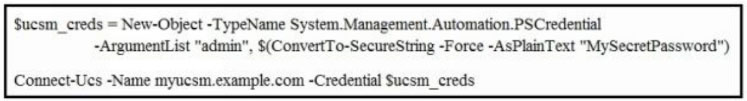

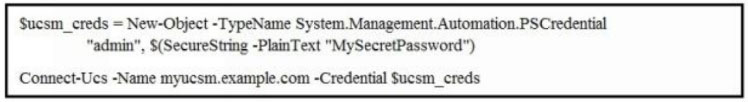

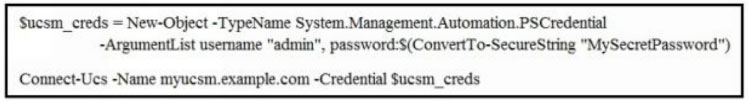

Which Cisco UCS PowerTool commands initiate a Cisco UCS Manager connection?
A.
B.
C.
D.
Answer : B
