Configuring Cisco MDS 9000 Series Switches (DCSAN) v1.0
Question 1

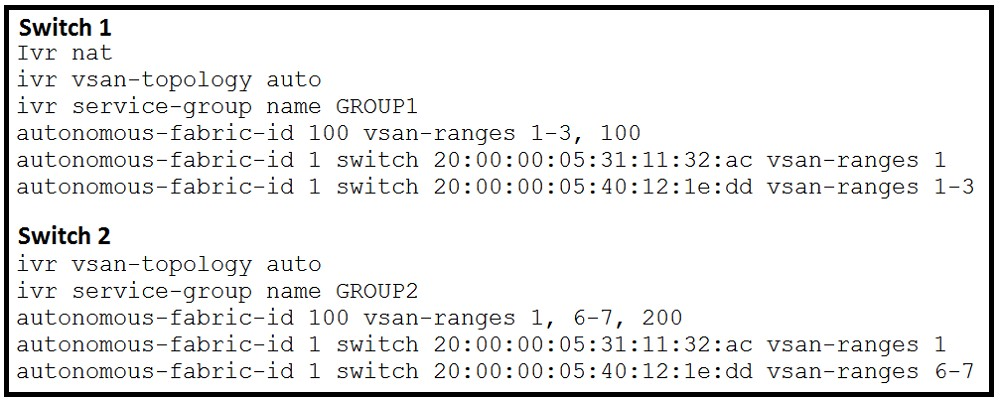

Refer to the exhibit.
What is the result of merging the fabric?
- A. The merged fabric IVR VSAN topology is set to activate.
- B. The merged fabric has NAT enabled.
- C. The merge is invalid.
- D. The merged fabric contains only service group Group1.
Answer : D
Question 2
Refer to the exhibit.
What is the result of the configuration?
- A. No-drop CoS values are advertised by the DCBX.
- B. LFC is prioritized over PFC on Ethernet 1/10.
- C. PFC operates on Ethernet 1/10 regardless of the capability of the peer.
- D. PFC fails to operate properly unless LFC is disabled on Ethernet 1/10.
Answer : A
Question 3
Which configuration is needed to enable manual ESP mode for Fibre Channel TrustSec on Cisco MDS switches?
- A. MDS(config)# interface fc 1/1 MDS(config-if)# fcsp esp manual
- B. MDS(config)# fcsp esp manual
- C. MDS(config)# interface fc 1/1 MDS(config-if)# fcsp mode gcm MDS(config-if-fcsp)# fcsp esp manual
- D. MDS(config)# interface fc 1/1 MDS(config-if)# fcsp esp manual MDS(config-if-fcsp)# mode gcm
Answer : A
Question 4
A storage network engineer is implementing SAN telemetry for a SAN infrastructure using Cisco DCNM for SAN. Which command is used to check the session status for telemetry operation?
- A. show telemetry pipeline stats
- B. show telemetry transport
- C. show telemetry control stats
- D. show analytics system-load
Answer : B
Question 5

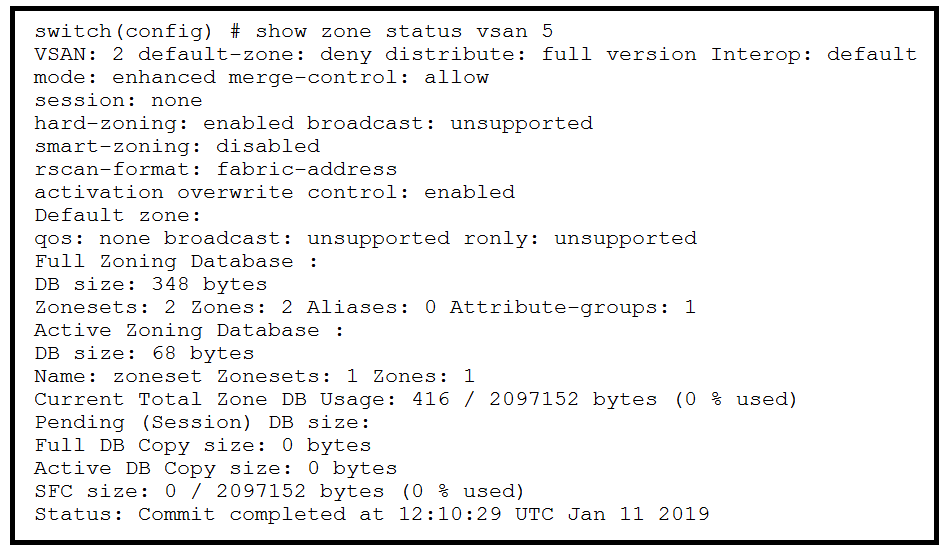

Refer to the exhibit.
Device alias information must be merged for two fabrics. Which setting must match on both fabrics before the merge can be performed successfully?
- A. device-alias mode
- B. session
- C. qos
- D. smart-zoning
Answer : A
Question 6
Which benefit of upgrading to the Cisco DCNM server-based advanced feature license for a Cisco MDS switch is correct?
- A. The license can be reassigned when a switch is replaced with a newer version within the same product family.
- B. The license can be assigned to either server MAC address or switch serial number.
- C. An unlimited number of devices can be added to the list of licensed devices.
- D. The license can be reassigned when the switch is replaced with a Cisco Nexus switch.
Answer : A
Question 7
DRAG DROP -

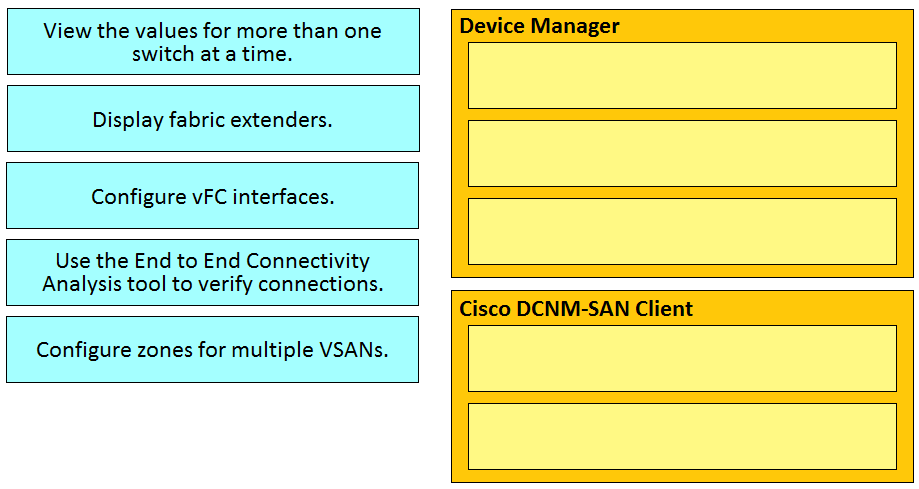

Drag and drop the DCNM configuration tasks from the left onto the correct tools on the right.
Select and Place:

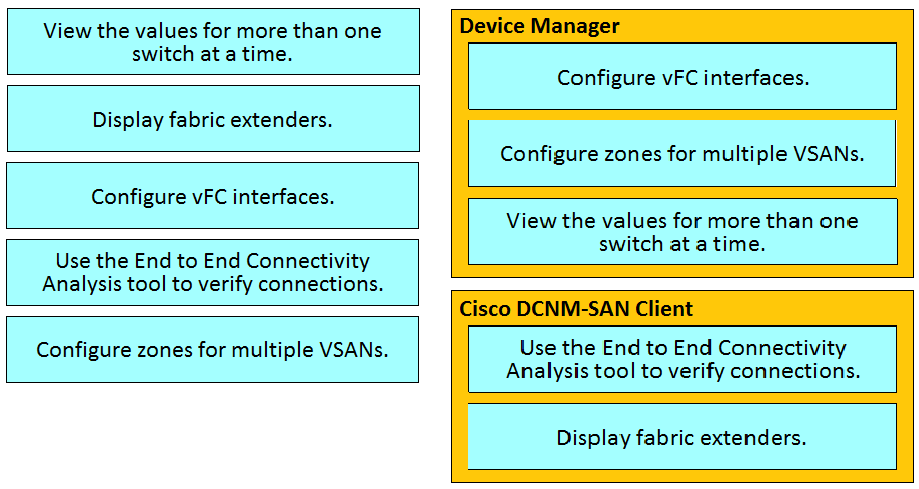

Answer :
Question 8
What does an unlicensed DCNM SAN fail to display?
- A. Fibre Channel, FCoE, and iSCSI topologies
- B. events and fault management
- C. historical performance monitoring
- D. real-time performance monitoring
Answer : C
Question 9

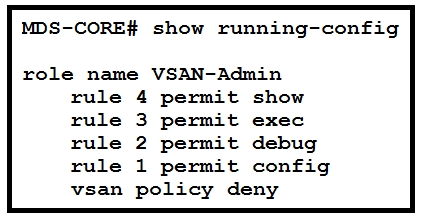

Refer to the exhibit.
A network engineer created a new user that uses the VSAN-Admin role on a Cisco MDS switch so a new colleague can manage the VSANs configured on the switch. Which action is required for the configuration to give permission to the new colleague?
- A. permit vsan 1-1000 must be configured as rule 5.
- B. permit vsan 1-1000 must be configured as rule 1.
- C. permit vsan 1-1000 must be configured under the VSAN policy deny.
- D. permit vsan 1-1000 must be configured under the VSAN policy allow.
Answer : C
Question 10
DRAG DROP -

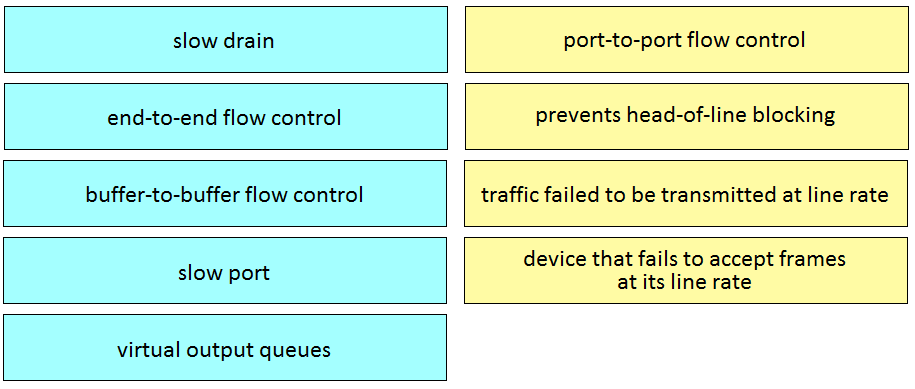

Drag and drop the items from the left onto the correct descriptions on the right. Not all items are used.
Select and Place:
Answer :
Question 11
A storage network engineer must configure a 48-port Cisco MDS switch to reject any login requests to VSAN 10 from unauthorized Fibre Channel devices and switches. All the devices that were already logged in to the switch from this VSAN must be allowed without any manual configuration. Which configuration must be applied?
- A. switch(config)# feature port-security switch(config)# port-security activate vsan 10
- B. switch(config)# feature port-security switch(config)# port-security activate vsan 10 no auto-learn
- C. switch(config)# feature port-security switch(config)# port-security database vsan 10 switch(config-port-security)# any-wwn interface fc1/1 "" fc1/48
- D. switch(config)# port-security activate vsan 10
Answer : D
Question 12

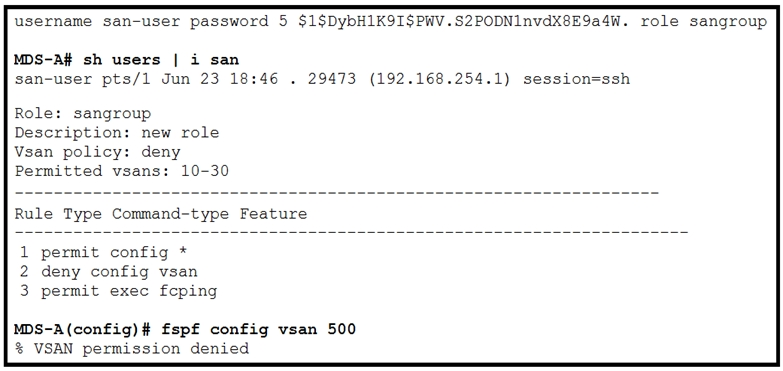

Refer to the exhibit.
The san-user must configure FSPF on the VSAN 500, but fails. An operator with network administrative rights must authorize the san-user to perform this work.
Which configuration must the operator apply?
- A. MDS-A(config)# role name sangroup MDS-A(config-role)# no rule 2
- B. MDS-A(config)# role name sangroup MDS-A(config-role)# rule 4 permit config feature fspf
- C. MDS-A(config)# role name sangroup MDS-A(config-role)# rule 2 permit config feature vsan
- D. MDS-A(config)# role name sangroup MDS-A(config-role)# vsan policy deny MDS-A(config-role-vsan)# permit vsan 500
Answer : D
Question 13
Which two protocols are used to implement SAN telemetry on Cisco MDS switches? (Choose two.)
- A. RPC transport
- B. GPB transport
- C. gRPC transport
- D. gRPC encoding
- E. GPB encoding
Answer : CE
Question 14

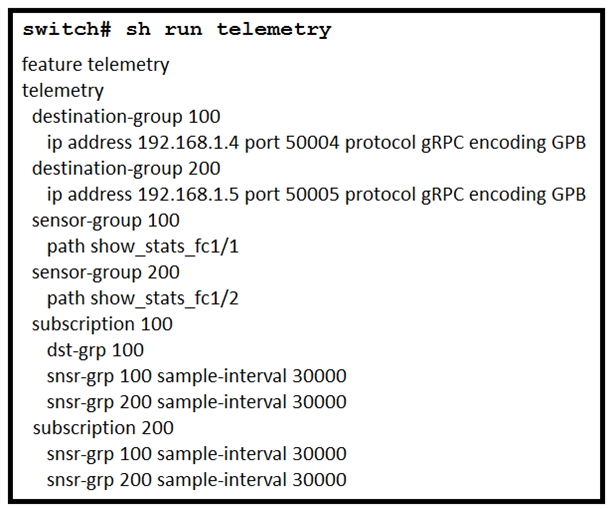

Refer to the exhibit.
A network engineer must configure the SAN telemetry streaming feature to stream statistics form a Cisco MDS 9000 Series Switch to two external receivers with the IP addresses 192.168.1.4 and 192.168.1.5. Which two configurations accomplish this configuration? (Choose two.)
- A. Add IP address 192.168.1.5 port 50005 protocol gRPC encoding GPB under destination-group 100.
- B. Add IP address 192.168.1.5 port 50005 protocol gRPC encoding GPB under destination-group 300.
- C. Add dst-grp 200 under subscription 100.
- D. Add dst-grp 300 under subscription 200.
- E. Add dst-grp 100 under subscription 200.
Answer : AC
Question 15
Refer to the exhibit.
Which command is used to determine which switch has the lock?
- A. show fcs ie vsan
- B. show zoneset active
- C. show zone status
- D. show flogi database
Answer : C
