Question 1
DRAG DROP -

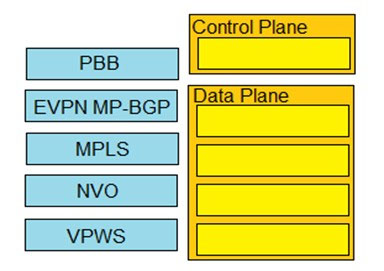

Drag and drop the EVPN components from the left onto the correct planes on the right.
Select and Place:

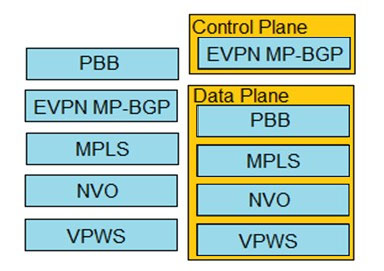

Answer :
Reference:
https://www.cisco.com/c/dam/m/en_us/network-intelligence/service-provider/digital-transformation/knowledge-network-webinars/pdfs/0420-epn-ckn.pdf slide 8
Question 2
What must match in the EVPN and L2VPN configuration mode when configuring EVPN native in a router?
- A. interface
- B. address family
- C. bridge domain
- D. EVI
Answer : D
Reference:
https://www.cisco.com/c/en/us/td/docs/routers/asr9000/software/asr9k-r6-2/lxvpn/configuration/guide/b-l2vpn-cg-asr9000-62x/b-l2vpn-cg-asr9000-
62x_chapter_01011.html
Question 3
An engineer is troubleshooting AToM on an IOS XE router and receives an error when creating the xconnect.
Which command does he need to complete to create the xconnect in AToM?
- A. encapsulation mpls
- B. encapsulation 12tpv3
- C. protocol 12tpv3
- D. protocol none
Answer : A
Question 4

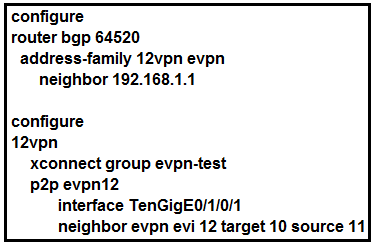

Refer to the exhibit. Which effect of this configuration is true?
- A. It configures VPWS multihomed.
- B. It configures VPWS single homed.
- C. It configures an IPv4 peering with 192.168.1.1
- D. It configures MPLS traffic engineering.
Answer : B
Reference:
https://www.ciscolive.com/c/dam/r/ciscolive/emea/docs/2019/pdf/BRKSPG-2798.pdf
Question 5
An engineer is troubleshooting an EoMPLS circuit on a Cisco IOS XR router interface that removes a VLAN from the distribution layer. Which configuration should the engineer apply in order to accomplish the task?
- A. interface GigabitEthernet 0/10.l2transport encapsulation dot1q 10 rewrite ingress tag pop 1 symmetric l2vpn xconnect group 103588 p2p 103588 interface GigabitEthernet 0/10.10 neighbor ipv4 10.10.10.2 pw-id 103588
- B. interface GigabitEthernet 0/10.10 encapsulation dot1q 10 rewrite ingress tag pop 1 symmetric l2vpn xconnect group 103588 p2p 103588 interface GigabitEthernet 0/10.10 neighbor ipv4 10.10.10.2 pw-id 103588
- C. interface GigabitEthernet 0/10.10 l2transport encapsulation dot1q 10 l2vpn xconnect group 103588 p2p 103588 interface GigabitEthernet 2/10.10 neighbor ipv4 10.10.10.2 pw-id 103588
- D. interface GigabitEthernet 0/10.10 l2transport encapsulation dot1q 10 rewrite ingress tag translate 1-to-1 dot1ad 10 symmetric l2vpn xconnect group 103588 p2p 103588 interface GigabitEthernet 0/10.10 neighbor ipv4 10.10.10.2 pw-id 103588
Answer : C
Question 6
DRAG DROP -

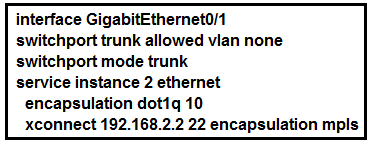

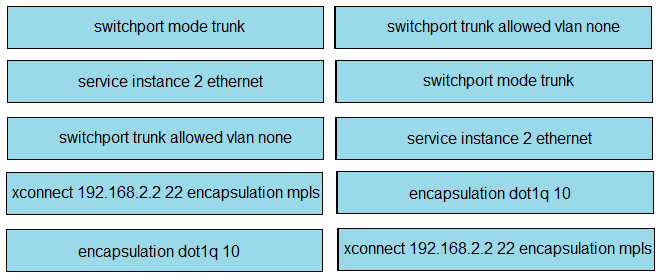

Refer to the exhibit. Drag and drop the EVC configuration items from the left onto the correct descriptions on the right.
Select and Place:
Answer :
Question 7
A network engineer is implementing Layer 3 MPLS VPNs on Cisco IOS/IOS XE PE routers. Which PE-to-CE routing protocol requires a separate routing process to be created for each VRF?
- A. RIPv2
- B. OSPF
- C. BGP
- D. EIGRP
Answer : B
Question 8
Which condition must be met before an environment can support CSC?
- A. The CSC-PE and CSC-CE must each be able to ping an interface in its respective global routing table.
- B. The CSC-PE and the CSC-CE must support IPv6.
- C. The CSC-PE and CSC-CE devices must be able to send labels to one another using BGP.
- D. The CSC-CE must support OSPFv3.
Answer : C
Question 9
In Layer 3 MPLS VPN implementations, if some of the VPNv4 routes on one PE router do not appear on another PE router, what could be the problem?
- A. RD mismatch between the PE routers
- B. RT export and import configuration errors
- C. VRF name mismatch between the PE routers
- D. RD export and import configuration errors
Answer : B
Reference:
http://blog.initialdraft.com/archives/1537/
Question 10
With Layer 3 MPLS VPN implementations on Cisco IOS XR PE routers, an interface is assigned to a VRF using the vrf command in which configuration mode?
- A. RP/0/RP0/CPU0:PE(config-bgp)#
- B. RP/0/RP0/CPU0:PE(config-if)#
- C. RP/0/RP0/CPU0:PE(config-bgp-af)#
- D. RP/0/RP0/CPU0:PE(config-vrf)#
Answer : B
Reference:
https://www.cisco.com/c/en/us/td/docs/ios_xr_sw/iosxr_r3-7/mpls/configuration/guide/gc37v3.html
Question 11
While implementing Layer 3 MPLS VPN, which feature should an engineer use at the PEs to transform the customer IPv4 prefixes into a unique 96-bit prefix?
- A. RT
- B. VC ID
- C. RD
- D. PW ID
Answer : C
Question 12
Which kind of traffic is supported in an MVPN Extranet?
- A. PIM dense mode with Reverse Path Forwarding
- B. PIM dense mode
- C. PIM sparse mode
- D. Bidirectional PIM
Answer : C
Reference:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ipmulti_mvpn/configuration/xe-16/imc-mvpn-xe-16-book/imc-mc-vpn-extranet.html
Question 13

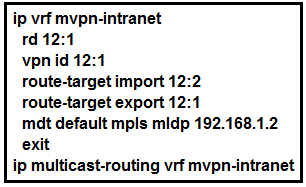

Refer to the exhibit. Which statement about this configuration is true?
- A. Router 1 will accept multicast routes with a route-target of 12:1.
- B. 192.168.1.2 must be reachable by all routers participating in the mvpn-intranet MVRF.
- C. Router 1 has statically defined thresholds for data MDT.
- D. The MVRF must be configured on each router on the customer and service provider networks.
Answer : A
Question 14

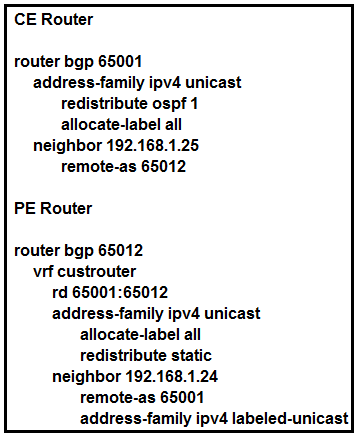

Refer to the exhibit. The CE router has established a BGP peering with the PE router, and the CE will use the core infrastructure of the PE as a backbone carrier to support CSC. Which additional task can you perform to complete the configuration?
- A. Configure static routing on the CE router.
- B. Configure the address-family ipv4 labeled-unicast command under the neighbor configuration of the CE router for the PE.
- C. Change the rd value to 65001:65001 under the VRF section of the PE router.
- D. Configure OSPF on the PE router.
Answer : D
Question 15

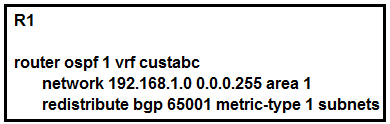

Refer to the exhibit. Which statement describes the result of this configuration?
- A. R1 redistributes BGP routes into the OSPF process of VRF custabc as E1 routes.
- B. R1 redistributes BGP routes into the OSPF process of VRF custabc as E2 routes.
- C. R1 mutually redistributes routes between BGP 65001 and the OSPF process of VRF custabc.
- D. R1 redistributes BGP routes into the OSPF process of VRF custabc as OIA routes.
Answer : A
